> BACK TO PROJECT LISTM/S. VENKATESHWARA HATCHERIES PVT. LTD. ( FOOD DIVISION )

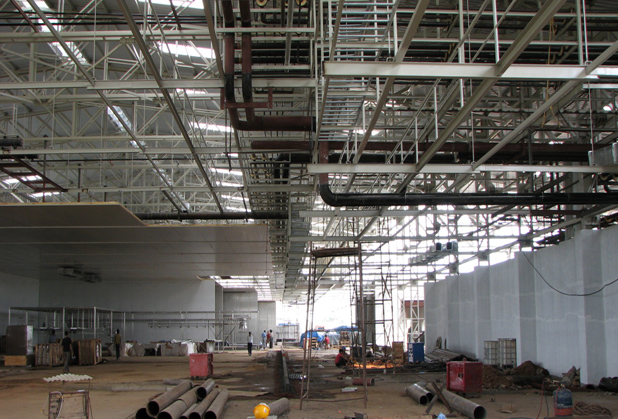

This is a state of the arts chicken processing plant and cold store located near Harihar in Karnataka. The plant capacity is 6000 birds/hr. The facility is designed as per European Union GMP standards.The entire process area is air conditioned / ventilated and of insulated sandwich panel construction. There is a walkable false ceiling suspended from a utility grid at 6.00m level. All utility pipes and electrical cables run on a pipe bridge and are distributed to equipment mounted on the utility grid.
The total project cost is Rs 42.00 Crore
Plot Area - 40,950.00 SQM
Main Plant
Area – 10,865.00 SQM + Mezzanine (F.F.) 2,115.00 SQM
TIE Level - 8.00 M
Insulated Panel Construction With Floor Insulation.
Floor Drains All Over The Plant With S. S. Covers.
Air Conditioned With Vapour Barrier.
Utility Building
Area - 1390.00 SQM
TIE Level - 6.00M
Rendering Plant With Boiler House
Area - 725.00 SQM
TIE Level – 12.00M

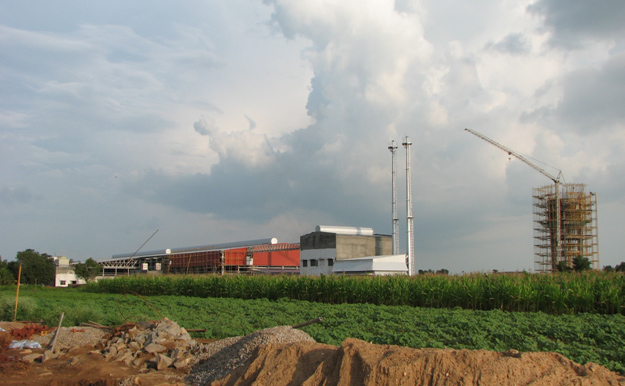

VIEWS FROM THE PROJECT


-
TECHNICAL SPECIFICATIONS
- Ammonia Based Refrigeration Ammonia : 600TR (2110KW)
- Air Conditioning : 285 TR
- Forced Draft Ventilation : 87,700 CFM
- Vacuum : 50 KW
- Compressed Air : 224 CFM (7BARS)
- Steam : 2.8X2 TONNE/HR
- Hot Water : 20 KL/DAY
- Ambient Water : 1000KL/DAY
- Process Water Drains External. : 1200 M +950M
- Offal Pump : 120KL/HR (18.5KW)
- Electrical System : 2X1500KVA
- Raw Water System : 800 KL
- Effluent Treatment System : 800 KL
- Furnace Oil Installation : FO 40KL, HSD 40 KL
- Fire Fighting Reservoir : 100 KL NBC Norm
