> BACK TO PROJECT LISTEMERSON NETWORK POWER INDIA PVT LTD.

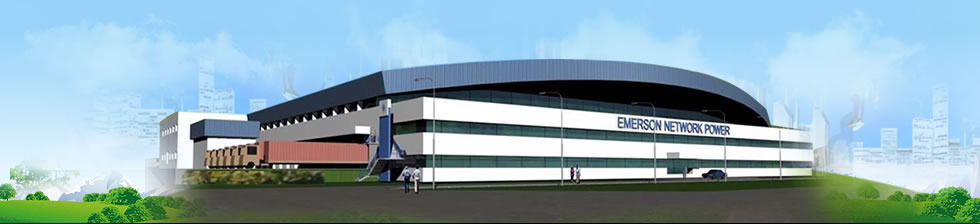

Emerson Network Power is an American Company with a global presence. This project is for manufacturing and assembly of large UPS systems up to 800 KVA, precision air conditions and outdoor enclosures.The manufacturing area is ground +1 with heavy duty slab and a grid of 10m X 12m. The first floor roof is a curved metal roof.
The entire plant is air-conditioned at 30oC to maintain a dust free environment as there is a lot of heat generated in the production and testing process. The plant is designed as per FM Global standards and Leed Green Building norms.
The total project cost is Rs 70.00 Crore

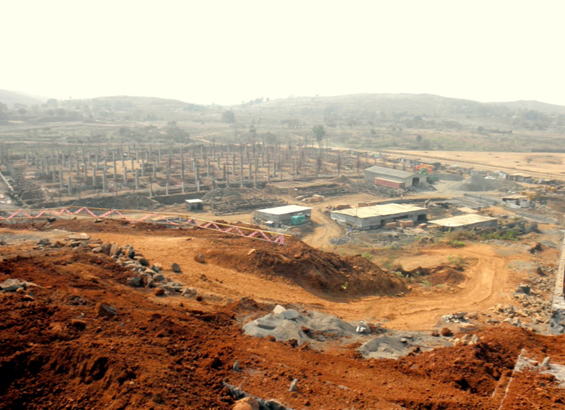

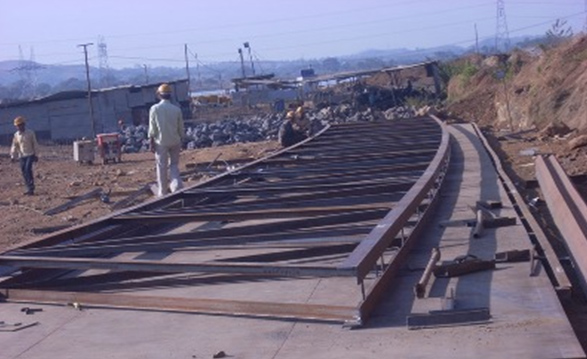

VIEWS FROM THE PROJECT


-
TECHNICAL SPECIFICATIONS
- Plot Area ( 13.63 Acer ) : 55,154.00 SQM
- Production Area : 32,400.00 SQM
- Office Area : 2,750.00 SQM
- Connected Load : 5.00 MVA
- D. G. Capacity : 2,500.00 KVA
- Compressors 4 Nos. (125 X 4 ) : 500.00 CFM
- Plant AirCon : 460.00 TR
- Process Water : 100.00 CM
- Domestic Water : 200.00 CM
- Fire Protection Reservoir : 700.00 CM
